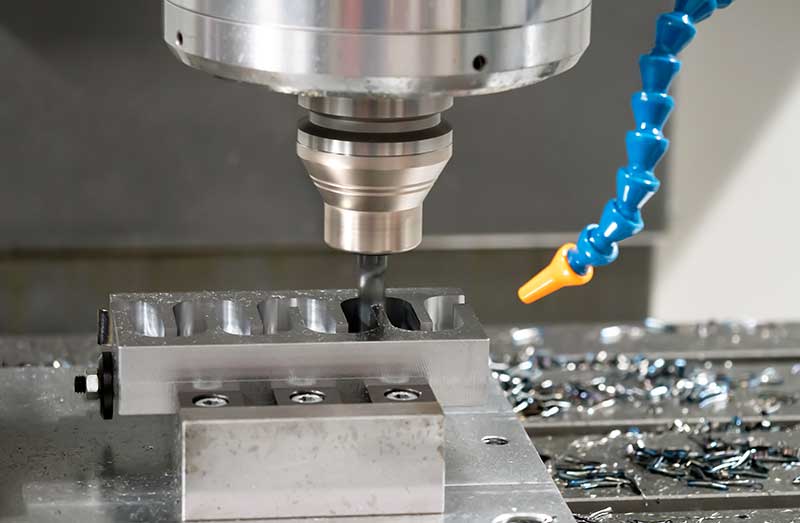

Why is silicone mold tooling Important?
Silicone mold tooling plays a vital role in manufacturing by enabling the efficient and precise production of silicone parts and products. It ensures reproducibility, cost-efficiency, and consistency in the manufacturing process. Long-term cost savings in high-volume production offset the initial investment in creating molds. The molds allow for the production of complex shapes with high precision and accuracy, which is crucial in aerospace, automotive, and medical devices. Silicone mold tooling also promotes quality control, as measures can be implemented during mold design and manufacturing to meet required quality standards. Additionally, it reduces material waste and enables customization for specific design requirements, offering flexibility and versatility in the manufacturing process. Essentially, silicone mold tooling is indispensable for industries that demand consistent, high-quality production and streamlined manufacturing processes.
Is the cost of molds fixed?
The tooling cost for a silicone project can vary widely depending on the complexity and size of the project, as well as the specific tools and molds required. Tooling costs typically include the design and manufacturing of molds or tooling used to produce silicone parts or products. These costs can be influenced by factors such as the type of silicone material, the number of cavities in the mold, and the intricacy of the part’s design.

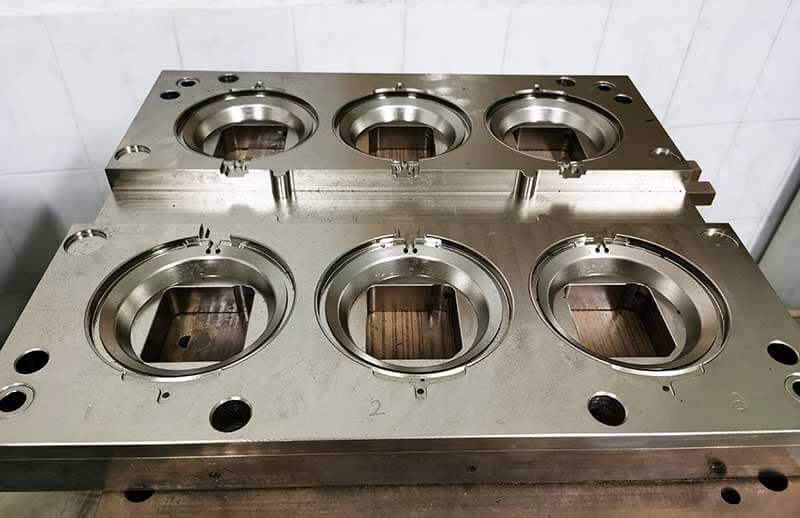

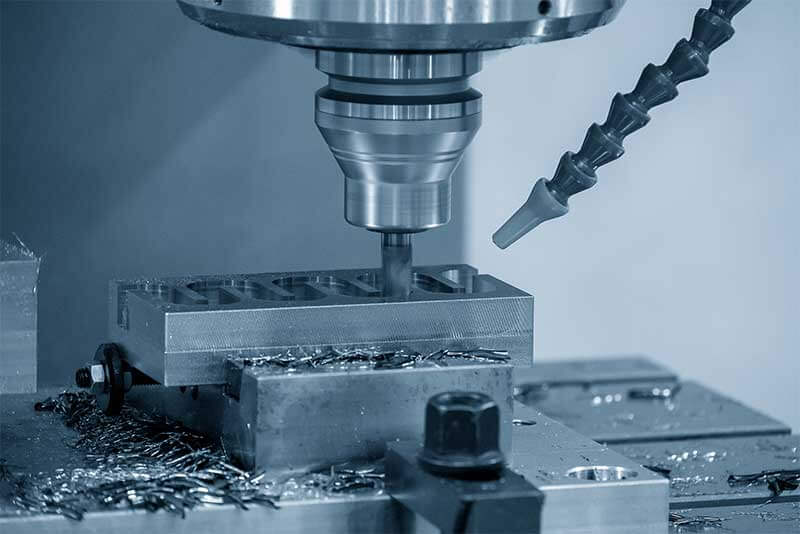

What are the Silicone mold tooling costs?
Usually, compression mold tooling costs range from US$400~3000 per set, depending on the size and complexity of the mold required.
Silicone mold tooling costs can vary widely depending on various factors related to the specific project and the silicone molding process. These factors include:
Mold Material: The type of material used for the mold can significantly influence the cost. Common mold materials include aluminum, steel, and silicone. Steel molds are generally more expensive but offer excellent durability and longer tool life.
Mold Complexity: The complexity of the mold design is a significant cost driver. More intricate and complex molds, which may include features like undercuts or multiple moving parts, will require more structure and manufacturing effort and, as a result, can be more costly.
Mold Size: The physical size of the mold affects the cost. Larger molds require more material and machining, leading to higher prices than smaller molds.
Number of Cavities: Molds with more cavities, meaning they produce multiple silicone parts in each molding cycle, are more expensive due to increased complexity.
Tolerance and Quality Requirements: Tight tolerances and high-quality surface finishes may necessitate more precise and costly mold manufacturing processes.
Customization: Customized molds that meet specific product requirements can incur higher costs than standard or off-the-shelf molds.
Prototyping and Testing: The need for prototyping and testing molds can add to the overall tooling costs, but it is essential for ensuring that the mold produces the desired quality and meets the design specifications.
To obtain a precise estimate for mold tooling costs for your particular project, you can contact us. We can evaluate the specific requirements of your project, provide detailed quotes, and offer guidance on optimizing the design and production process to manage costs effectively while meeting your project’s needs.
Extra costs to be factored into creating a silicone mold
When embarking on a new project involving creating products using materials like liquid silicone rubber, natural or synthetic rubber, or other standard mold rubbers, there are several additional costs to consider beyond the mold cost. These supplementary expenses include:
CAD Design Requirements: To create custom molds for the manufacturing process, CAD designs are essential. The cost of CAD designs can begin at approximately $100-$200 and may increase for more complex projects with intricate elements or two-part molds.
Prototyping Necessity: We strongly recommend prototyping for all our clients. A 3D-printed prototype is a cost-effective method to assess undercuts and complex geometry within the mold framework, especially in scenarios involving rigid gaskets. This step ensures functionality before investing in a more expensive wooden mold. Precision in the mold core design is crucial, as steel molds involve substantial expenses, making it imperative to get it right the first time.
Shipping and Storage Expenses for Molds: Although shipping costs are relatively minor, it’s essential to consider whether it’s necessary to have your molds shipped to your location. In most cases, storing your mold box at the manufacturing facility responsible for producing your items is advisable. This practice helps prevent mold damage and extends the lifespan of your molds, as reputable manufacturers typically store cleaned molds after use.
These factors should be incorporated into your project budget to ensure a comprehensive understanding of the expenses of creating silicone molds and related manufacturing processes.

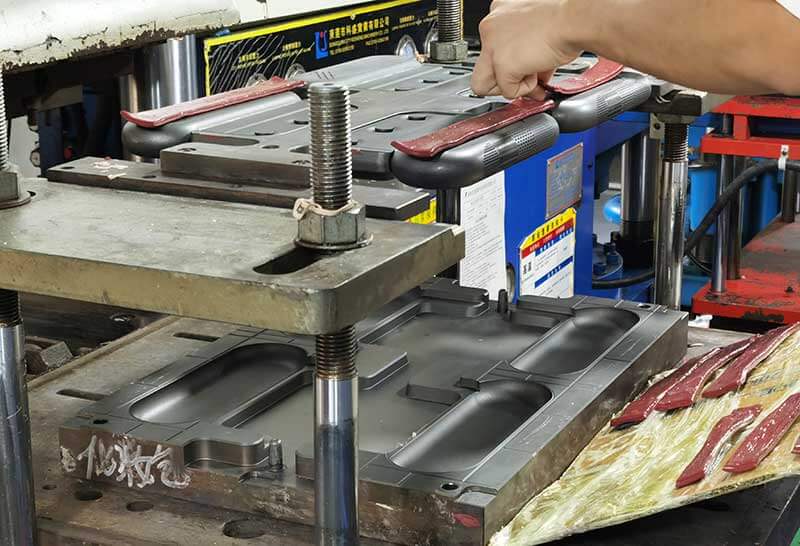

How to reduce mold costs?
To reduce injection molding costs:
- Start by optimizing CAD designs for efficient resource use.
- Simplify part features and eliminate cosmetic elements that add unnecessary complexity.
- Consider reducing part size if feasible, as more significant parts often require more expensive molds—reuse molds for various applications with adjustments or modifications.
- Utilize technologies like insert molding and over-molding to save costs, particularly in attaching plastic to metal parts—Employ Design for Manufacturing (DFM) principles to create efficient designs within budget.
- Use multi-cavity and family molds to increase production rates and reduce cycle times.
- Explore self-mating parts to minimize mold size and quantity, leading to significant cost savings, especially in high-volume production.
What is the best material for making a mold?
In the manufacturing industry, molds are a fundamental component of various processes, including metal stamping, plastic injection molding, rubber compression molding, blow molding, and silicone rubber molding. It significantly influences the outcome, particularly in functional products where precision and assembly tightness are paramount. As a result, many renowned silicone product manufacturers opt for high-quality mold steel materials to enhance product quality in various aspects.
Silicone mold steel materials come in several categories, and the choice depends on specific requirements. Some commonly used mold steel materials in the silicone industry include:
S50-S55 Steel: This medium-carbon steel offers a hardness ranging from 170-220HB and is relatively cost-effective. It is used for less critical mold parts, such as mold pillars and non-essential components.
P20 Steel: P20 mold steel is one of the most common materials for silicone molds. With a hardness ranging from 26-32HRC, it is suitable for producing a wide range of silicone products, including household items and everyday products.
718 Steel: 718 steel is a higher-grade material with a hardness range of 330-370HB. It is known for its long lifespan and is used for large, high-demand silicone products.
NAK80 Steel: NAK80 is a premium medium-carbon alloy steel known for its toughness, wear, and corrosion resistance. It is ideal for high-precision mirror molds and products with high surface quality requirements.
S136 Steel: S136 is high-quality stainless steel with a hardness of 290-300HB, making it suitable for molds used in corrosive and high-stress environments. It is often used for products with high surface quality requirements and long production runs.
H13 Steel: H13 steel is commonly used for cutting and punching molds in silicone product manufacturing, offering high hardness and temperature resistance. It is also used in die-casting molds.
420SS Steel: Though less common in the silicone industry, 420SS steel with a hardness range of 30-33HRC can be used for mold bases, plates, and insert parts.
The choice of mold steel material depends on the specific application, surface quality requirements, and expected production volume. Selecting the suitable mold steel material is essential for achieving high-quality silicone products, enhancing efficiency, and reducing production costs. Different industries, including automotive, electronics, construction, aerospace, and consumer goods, have varying demands, and the choice of mold steel should align with these specific requirements.
How long will molds last?
The lifespan of molds is primarily influenced by the choice of materials, and different materials have varying durability. For example, at Mitour Silicone, we mainly use steel molds, which typically have a lifespan of 2-3 years and can be used for over 200,000 cycles. It’s common for a single set of steel molds to produce tens of thousands or even millions of products. Steel molds not only offer a longer lifespan but also provide better dimensional accuracy and finer parting lines.

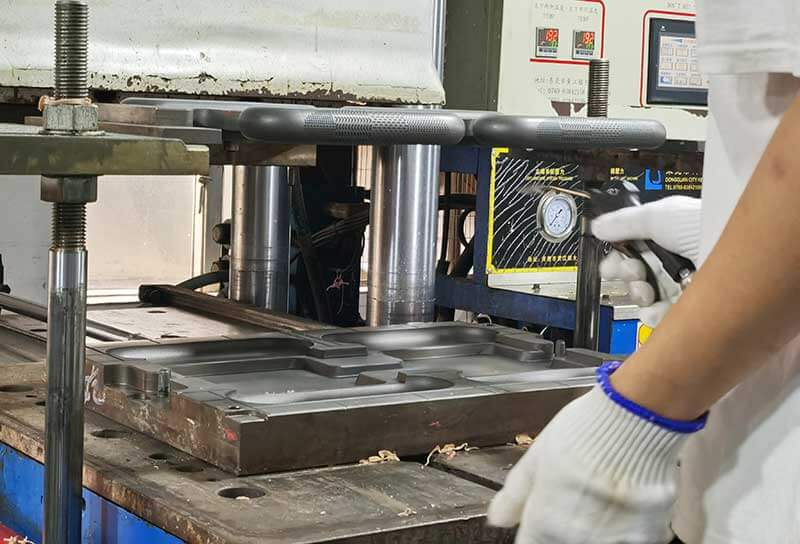

Extending The Life Of Molds
To extend the life of molds, several vital practices are essential. Choose high-quality mold materials and designs. Implement efficient cooling and injection processes to reduce wear. Maintain regular mold maintenance, cleaning, and inspections to address any issues promptly. Properly handle, store, and protect molds from damage during use and storage. Optimize production parameters to reduce stress on the mold. Ensure compatibility between mold materials and the injected silicone. Employ strict quality control to prevent defects that may damage the mold. With these practices, molds can have a longer and more productive lifespan, reducing the need for frequent replacements and saving costs in the long run.
What does the tooling process look like?
The tooling process in manufacturing, such as injection molding or silicone mold production, typically involves several key steps:
- Design: The process starts with the creation of the mold or tool. Engineers and designers create detailed CAD (Computer-Aided Design) drawings that specify the dimensions, shapes, and features of the mold.
- Material Selection: The appropriate materials for the mold are chosen, considering factors like the type of production, expected volume, and the material being molded.

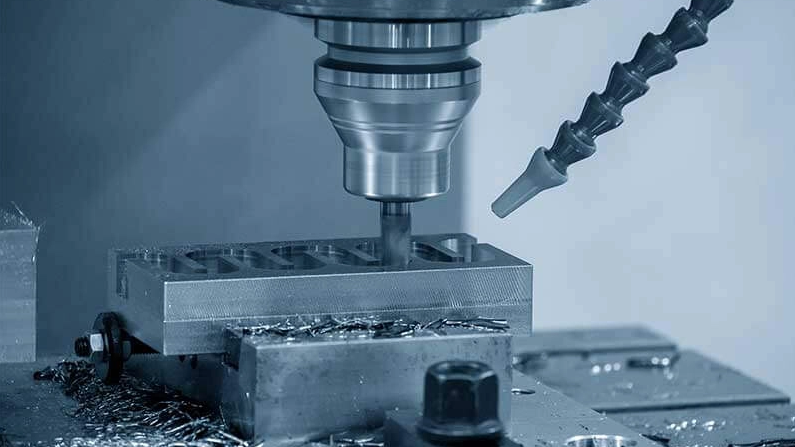

- Machining and Fabrication: Once the design is finalized, the chosen materials are cut, shaped, and machined to create the mold’s components. This step may involve CNC (Computer Numerical Control) machining, milling, turning, and other fabrication methods.
- Assembly: The individual components of the mold, such as the core and cavity, inserts, and other necessary parts, are assembled to create the complete mold.
- Surface Finish: The mold’s surfaces are finished to the required smoothness and texture, essential for the final product’s appearance and functionality.
- Fitting and Alignment: The mold components are carefully fitted and aligned to ensure proper parting lines and dimensions.
- Testing and Adjustment: The mold undergoes testing to ensure it functions correctly. Any issues or imperfections are addressed and adjusted as necessary.
- Trial Runs: The mold is tested with a limited production run to assess its performance the quality of molded parts, and to fine-tune the production process.
- Production: Once the mold is validated and optimized, it is put into full-scale production. The molding machine injects the material into the mold, and the parts are produced in large quantities.
- Quality Control: Continuous quality control measures are in place to monitor the production process and ensure that each molded part meets the desired specifications.
- Maintenance: Regular maintenance and cleaning are essential to keep the mold in good condition and extend its lifespan.
- Replacement or Refurbishment: Over time, molds may wear out and require replacement or refurbishment. This involves repairing or reconditioning worn components to prolong the mold’s usefulness.
The tooling process may vary depending on the manufacturing method and materials used. Still, these general steps provide an overview of how molds are created and utilized in various production processes.
Consult with a Professional Silicone Products Manufacturer
To obtain a precise tooling cost estimate for your silicone project, you can consult with a reputable silicone products manufacturer. With Mitour Silicone’s wealth of experience, we can not only provide a detailed cost breakdown but also offer valuable guidance on the most suitable materials and production techniques for your specific project. Feel free to contact us via our quote form or widget – we eagerly anticipate the opportunity to discuss your needs and find the best solutions. We look forward to speaking with you!
